Drafting Fitted Jacket

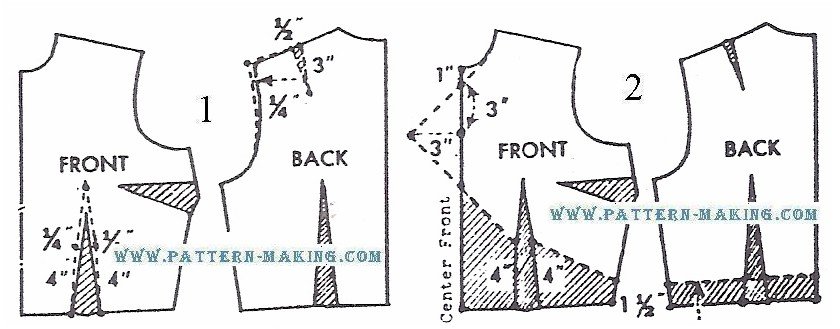

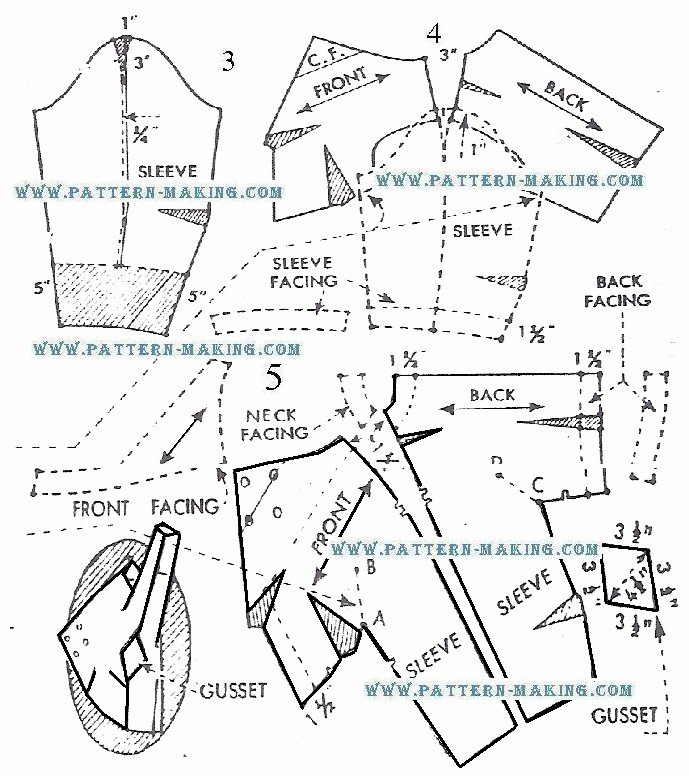

Jacket with Kimono sleeve [style 5] 1) using the dress foundation as in style 1, trace front & back to waistline only; then extend the front dart up to the level of the side dart. make waist dart 1/2" wider [1/4” on each side of the dart], 4” above waistline instead of the 1/4" ease on back shoulder, make a dart, 1/2" wide and 3” long at center shoulder seam; then add 1/4" to shoulder seam beyond armhole as shown. 2) draft outline of front as indicated; then shorten jacket3) For . . .
