Drafting Double Breasted Jacket

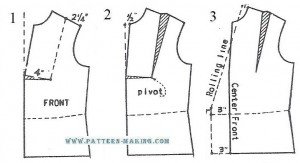

Sketches show the front  and side view of the jacket front and shoulder dart and waist dart fitting. back has a seam at center back and is in 4 sections. jacket has the regular notch collar use the jacket foundation to draft this pattern 1) mark position for shoulder dart; then continue to draw a straight line to the top at center front.

2) for shoulder dart, swing upper part of front to within 1/2" of dotted line.

3) for double breasted front, add 3” to center front, bringing line 1” above the waistline. from that point, draw the . . .
