Drafting Coat with Collar

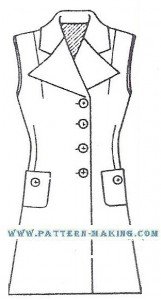

2 styles coat with deep notch collar

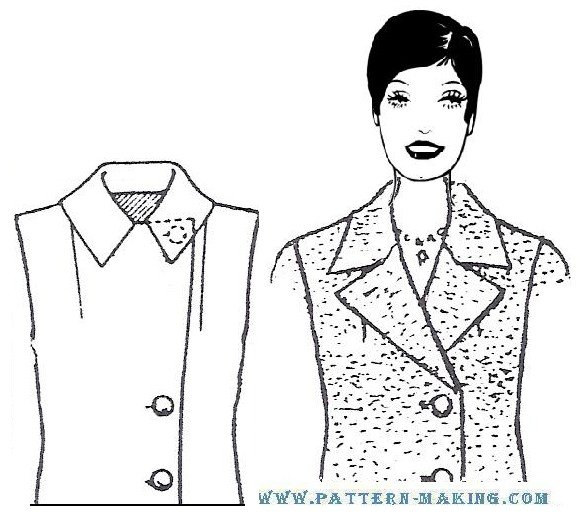

Illustrations show that coat with a wider collar than the regular notch collar. the collar has a 1-1/2” stand at center back; 1” stand at shoulder.

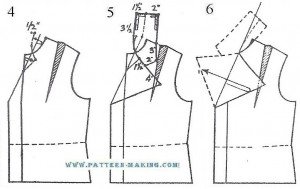

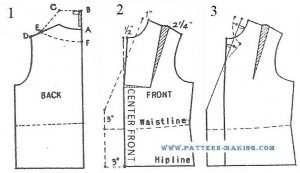

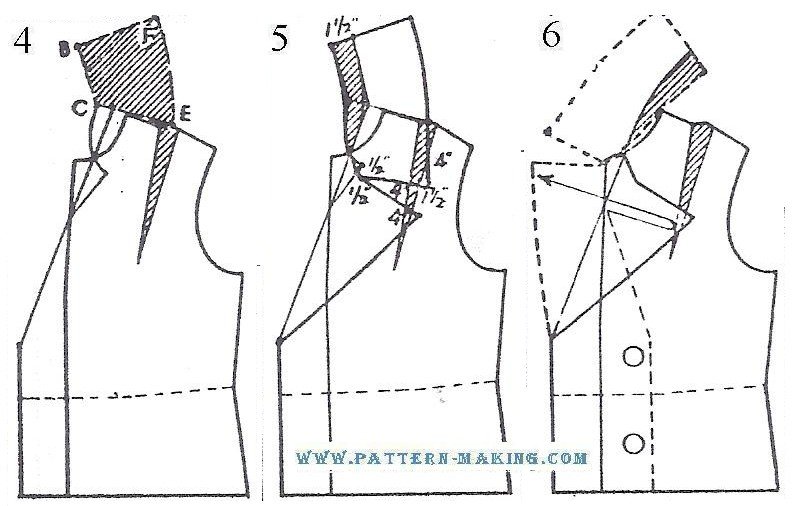

1) back of collar a to b – 3” b to c – 3-1/2” d to e – 1-1/2” c to e – connect. b to f – equals c to e plus 1/4" e to f – draw a curved line . . .
