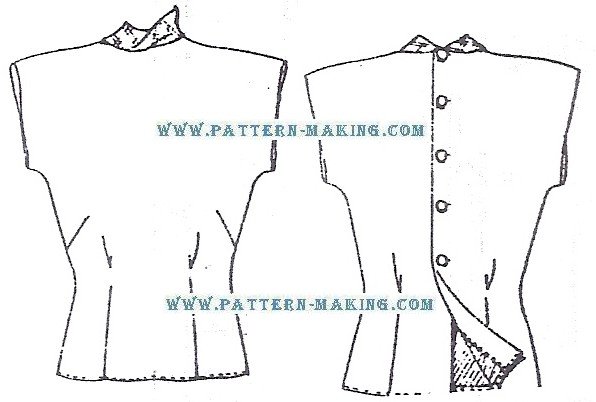

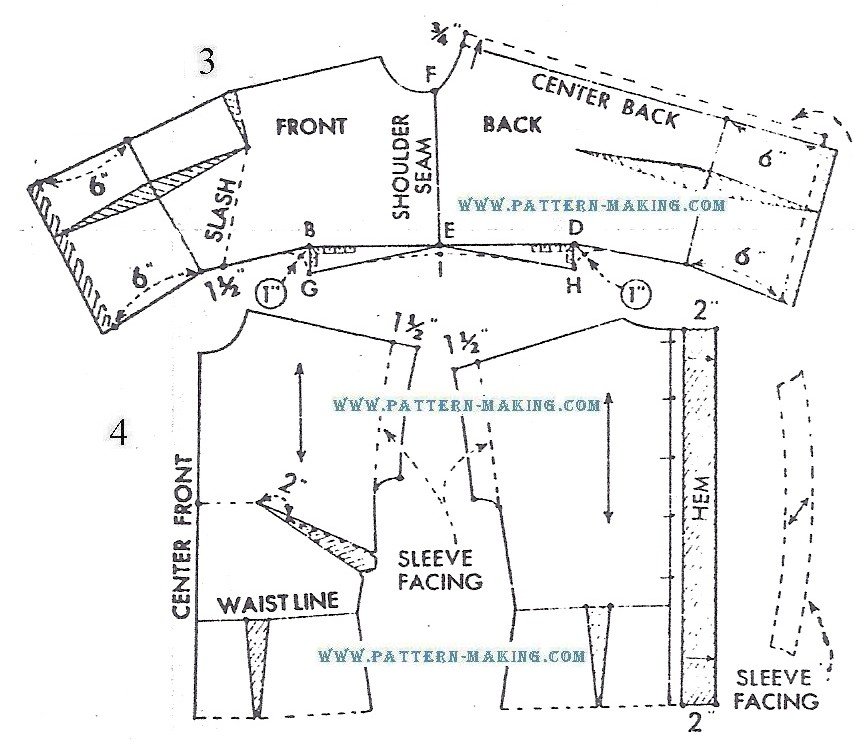

Turtle Neck Collar To draft the dropped shoulder Pattern, trace outline of dress Foundation with shoulders even At neck line. And 1” apart at Armhole. 1) For the dropped shoulder Outline, the draft as follows: A to B – 1-1/2”. C to D – 1/1/2”. B to C – Connect. B to E – Equals half of B to D. 2) B to G – 1-1/2” [square a line Down at B]. D to H – 1-1/2”. G to E – Connect. E to H – Connect. E to I –1/2”. G to H – Draw curved line Through 1.





Draw curved line at each Side of the underarm seam Above points G and H as Shown as dotted lines. For length of blouse, draw Lower line in front and Back 6” below waistline. For back closing overlap Add ¾” to center back. For diagonal side dart, Draw slash line in front, Then slash and close up Front dart as shown in diagram 1V. Draw V-shaped Dart 2” away from breast point. The waist darts in front And back are joined below Waistline only. 4) For armhole facing, place Shoulders together of front And back and trace outline Of armhole, making facing 1-1/2” wide as indicated. Add 2” hem at back opening: Then add seams to complete The pattern. Mark positions for button holes as shown.

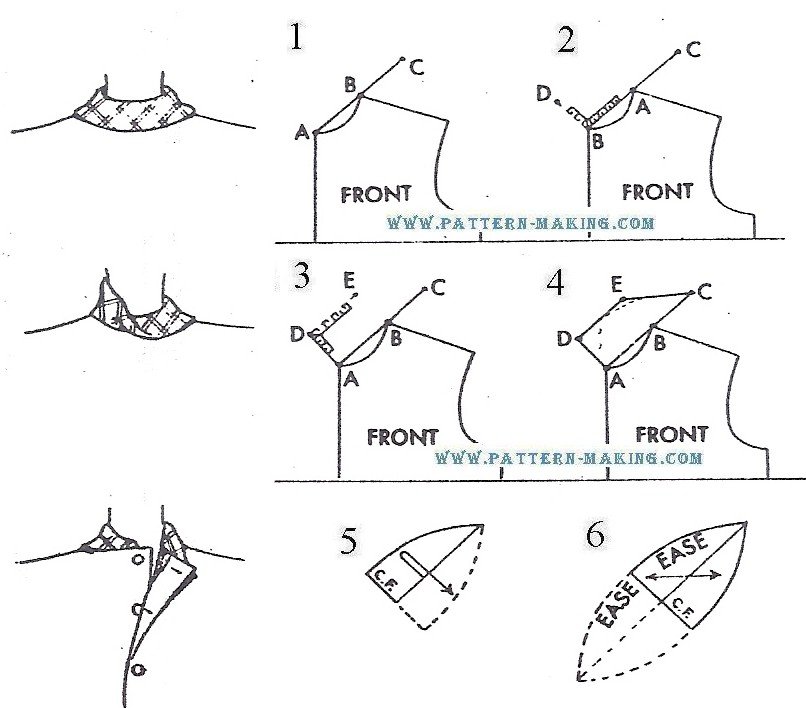

TURTLE-NECK COLLAR DRAFT I) Trace front: then draft Collar as follows: A to B – draw straight line. A to C – equals neck measure From center front To center back [about 7” for size 16]. 2) A to D – 2-3/8”, this equals 1” for stand plus 1-3/8” for turn back. 3) D to E – Equals line A to B. 4) E to C – Connect; then draw Curved line at point E. 5) Trace for double material collar. 6) Trace for entire collar; Then add seams. Collar has extra allowance For ease at neck edge. This Will allow the collar to Roll enough to cover neck Seam line.
